Quick Details

  • Condition: New
  • Type: new, wood barking machine log debarker machine
  • Use: Peeling
  • Production Capacity: 8-9 t/h
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: JX
  • Model Number: JX-8000
  • Voltage: 380v/220v
  • Power(W): 11000w
  • Dimension(L*W*H): 8*1.2*1.6m
  • Weight: 4000kg
  • Certification: iso
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • CAPACITY: ADJUSTABLE
  • Machine: Can customize
  • Power: 11kw
  • Capacity: 8-9t/h
  • barking rate: > 97%
  • log lenght: <8 m
  • log diameter: 20-500mm
  • machine size: 8000*1200*1600m
  • delivery time: 5 working days

Packaging & Delivery

Packaging Details we usually waterproof packaging for our wood barking machine log debarker machine for our customers before. Because our this wood barking machine log debarker machine is big, so we need to ask you in advance before delivey.
Delivery Time 5 working days for wood barking machine log debarker machine

Sell wood barking machine log debarker machine with competitve price



1.Working principle of wood barking machine log debarker machine:

This machine is the rotor teeth with stripping produced a unique force, so that wood in the hopper tank plate section of a recurring cycle of movement, but also around its own axis to do wood turning motion segment and irregular beating.

To this paragraph with wooden teeth, wood and wood paragraph paragraph paragraph wood and keep the friction between the storage tank, impact, compression, fast bark are separated, to achieve effective peeling effect.



2. Range of application of wood barking machine log debarker machine :

 It had single and double roller type according to different wood with different diameter.

Can suit for many kinds of different trees, logs, especially for the bend one  have more high peeling rate than

the traditional rotary type



3.The advantage of log wood debarker machine:

The machine is fixed when working , so the power consumption and the failure rate  is small and with low noise ,

 Wood debarker is a new generation wood peeling equipment with high efficiency which was innovated by

our factory on the basis of foreign advanced technology.

It conquer the defect of rolling drum and improve capacity greatly. It is suitable for big diameter wood and large scale factory.

4.The main parameter of wood barking machine log debarker machine :

Model

JX-6000 (double rollers)

JX-8000

(single roller)

JX-10000

(single roller)

Motor

7.5*2

11kw, 3 phases, 380v.50 hz

15kw,3 phases,380v,50hz

Capacity

5-10 t/h

8-9 t/h

10-12 t/h

Barking rate

> 97%

> 97%

>97 %

Log length

<6 m

<8 m

<8.5 m

Log loss rate

< 2%

< 2%

< 2%

Log diameter

20-500mm

20-500mm

20-800mm

Dimension

6.3*1.3*1.6m

8*1.2*1.6m

10*1.2*1.6m

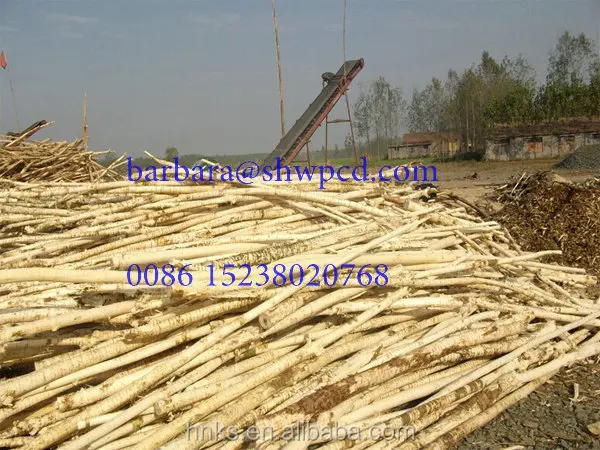

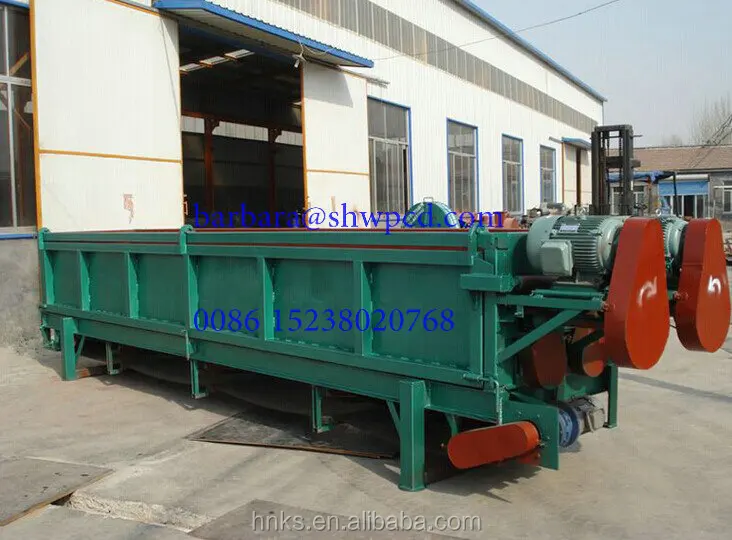

 4.The pictures of wood barking machine log debarker machine :





Ms barbara

Mobile:0086-15238020768

Tel: 0086-0371-65863108

Fax:0086-0371-65863109

Skype:charcoal68

WhatsApp: +86 15238020768
