Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: HX feed block making machine
  • Model Number: SYST-45 salt block making machine
  • Type: salt block making machine
  • Voltage: 380V
  • Power(W): 7.5KW
  • Dimension(L*W*H): 800*1200*2300MM
  • Weight: 1000 kg
  • Certification: CE salt molasses brick making machine
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • machine name: salt block making machine
  • usage: salt block machine
  • warranty: 1 year
  • capacity: 2-3pcs/min
  • type: semi-automatic/full automatic
  • voltage: 380v
  • power: 7.5kw
  • application: salt block machine
  • certification: CO
  • packing: wooden package

Packaging & Delivery

Packaging Details wooden box
salt block making machine
Delivery Time Shipped in 10 days after payment



feed block making machine salt molasses brick making machine

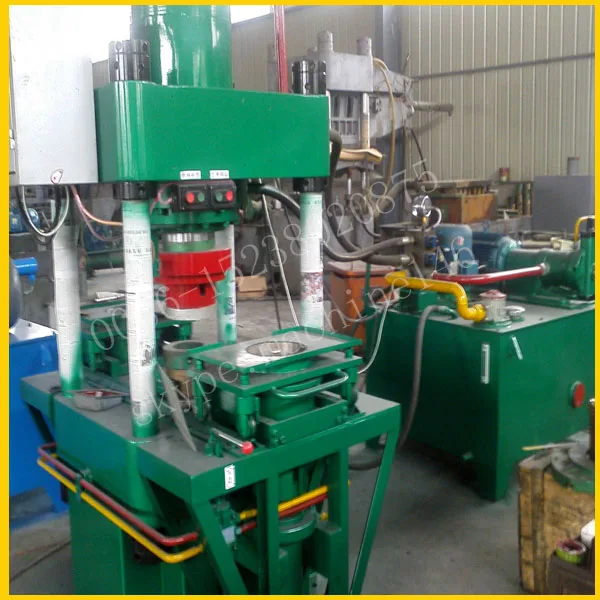

feed block making machine is my factory made of newly developed a large tablet machine, it will compress dry granular, powder-like material into a variety of general and special-shaped pieces suitable for large-scale repression of products on the products requiring high-density products, while a multi-chip module can be used for large-scale production industries, equipment, high precision, easy to learn mold replacement and installation. High degree of automation. All actions by the microcomputer PLC control.

The entire hydraulic system imported from Taiwan, stability, higher, to avoid oil spills, oil-for-dirty, the pressure is not enough, action is not synchronized for continuous problems. Working part and the separation of part of the hydraulic system of independent, non-polluting, automatic heat, the device to minimize wear and tear.



Main technical parameters of feed block making machine



Model

SYST-45

SYST-100

SYST-200

SYST-500

Maximum Working pressure

45T

100T

200T

500T

Uprush max stroke

150mm

200mm

200mm

200mm

Max. Depth of fill

150mm

180mm

200mm

200mm

Max diameter of  lower mould

300mm

300mm

300mm

300mm

Max diameter of products

200mm

200mm

200mm

200mm

Capacity

4~8 times per minute

4~6 times per minute

4~6 times per minute

4~6 times per minute

Motor power

7.5kw

11kw

15kw

11kw+3kw

Dimension

800*1200*2300mm

1000*1200*2450mm

1400*1500*2450mm

2600*1600*2950mm

Weight

1800kg

2800kg

4500kg

8000kg
