Wood pallet making machine/Sawdust pallet block making machine

FOB Reference Price:Get Latest Price
US $1,000-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Hot Press
Application:
block making
Place of Origin:
Henan, China (Mainland)
Brand Name:
JINGXIN
Model Number:
HX-980
Voltage:
380V
Power(W):
13kw
Dimension(L*W*H):
4100x1370x4000 Mm Etc
Weight:
1300
Certification:
ISO
Warranty:
one year
After-sales Service Provided:
Engineers available to service machinery overseas
type:
sawdust pallet block making machine
Color::
Green
Specification model:
MDJ75*75
Outlook size (mm):
5000*600*1300
Production efficiency (m3/24h):
2
Glue water amount used (kg/m3):
100-120
Supports the density (kg/m3):
550-600
packing:
wooden case
delivery:
within 10 days after receive the prepayment
SupplyAbility
SupplyAbility:
80 Set/Sets per Month
Packaging & Delivery
Packaging Details

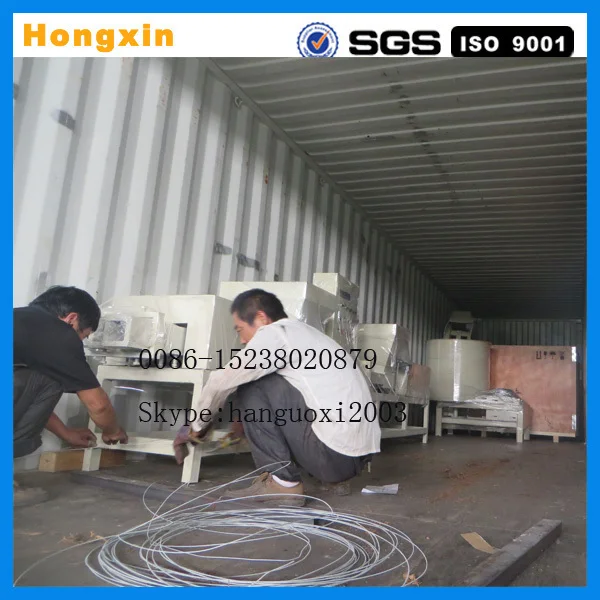

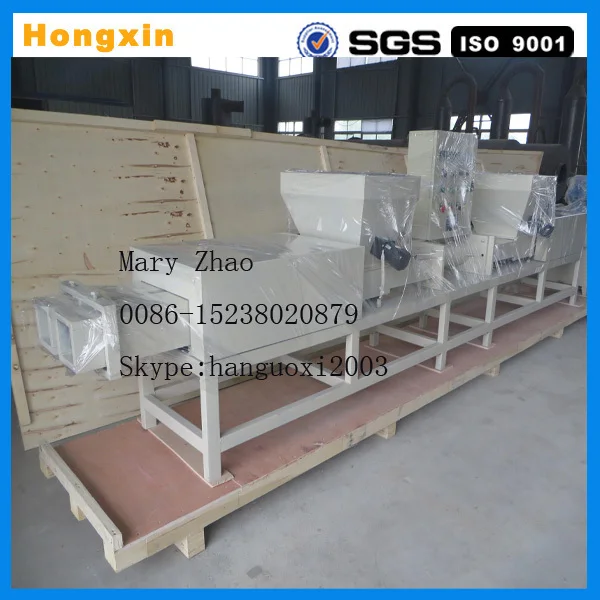

Sawdust pallet block making machine / Wood pallet making machine packing with standard export container
Port
Qingdao shanghai tianjin
Lead Time :
within 10 days

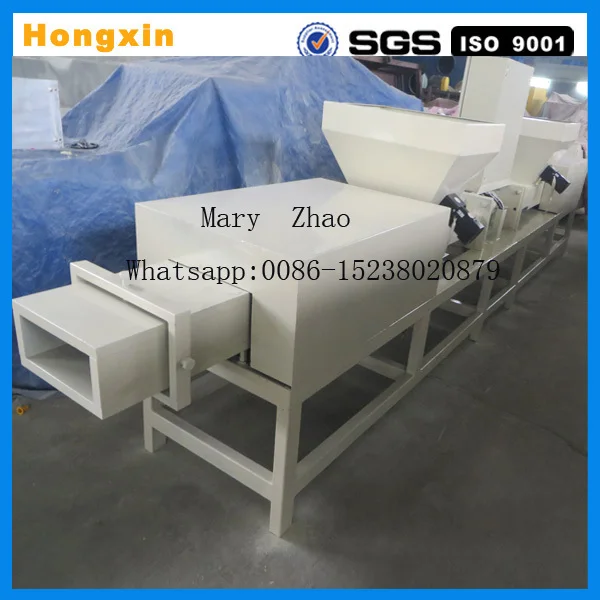

Sawdust pallet block making machine / Wood pallet making machine



This cushion has the diameter 18-28mm vertical heart garden hole according to the different specification, conforms to the European Tray Association the load-bearing wooden block's manufacture instrument of ratification stipulation which is made by the wooden dregs board (the load-bearing wooden block specification 100mm*145mm diameter not to be able to surpass 32mm, the 145mm*145mm diameter not to be able to surpass 40mm).

State Forestry Bureau East China lumber and woodware quality surveillance test center check result





Specification model

Power input (kw)

Outlook size (mm)

Production efficiency (m3/24h)

Glue water amount used (kg/m3)

Supports the density (kg/m3)

Warm prosecution type

Complete machine weight (kg)

MDJ75*75

13

Straw grinder

2

100-120

550-600

PID adjusts the merit accent to press the control

1000

MDJ80*100

13

5000*600*1300

2

100-120

550-600

PID adjusts the merit accent to press the control

1000

MDJ80*120

13

5000*600*1300

2.2

100-120

550-600

PID adjusts the merit accent to press the control

1050

MDJ90*90

13

5000*600*1300

2

100-120

550-600

PID adjusts the merit accent to press the control

1000

MDJ90*140

13.5

5000*600*1300

2.4

100-120

550-600

PID adjusts the merit accent to press the control

1100

MDJ100*100

13

5000*600*1300

2.2

100-120

550-600

PID adjusts the merit accent to press the control

1050

MDJ100*115

13

5000*600*1300

2.3

100-120

550-600

PID adjusts the merit accent to press the control

1080

MDJ100*140

13.5

5000*600*1300

2.5

100-120

550-600

PID adjusts the merit accent to press the control

1120

MDJ140*140

15

5000*600*1300

3

100-120

550-600

PID adjusts the merit accent to press the control

1350

sawdust wooden pallet BLOCK .jpg

hot compressed pallet block making machine.jpg

pressing machine.jpgsawdust hot pressing machine.jpgsawdust pallet making machine.jpg
